50-100-150-200 Kgs per Hr Solid Waste Incinerator for sale

50-100-150-200 Kgs per Hr Solid Waste Incinerator for sale

Waste Incinerator Design TS150 PLC, Testimonial

Construction is dual/double combustion chamber with 02 sets oil burner, batch load

incineration equipment. Waste feed chamber is 1570Liters (1.57m3, TS150 PLC).

Primary & Secondary combustion chambers and smoke filter chamber.

Batch load on the bottom of chamber. Incinerator PLC panel control suit for local operation.

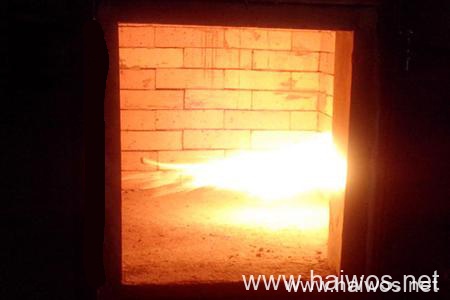

Primary Combustion Chamber:

※Main Feature:

— Double Combustion Chamber

— Double Italy Burner

— Smoke Filter included

–Burning Rate: 50-200kgs per hour optional

–Primary Combustion Chamber: 1.57M3(1570Liters)

— Incinerator Mainbody steel: 8mm thickness

— Paint for outside face: 800°C Rate

Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate

— Idea for campsite average or below 600 people

— Chimney: 10 Meters, Stainless steel

Feeding door primary chamber:

Items/Model

TS150( PLC)


Principle

Waste Incineration Treatment

Burn Rate

Average 150 kg/hour

*( 50/100/200kgs/ hr optional)

Feed Capability

Standard 750kg/feeding

Control Establishing

PLC( Programmable Logic Controller Heater)

Text Steel

8mm thickness

Chamber Product

High Alumina Fire Block Wall, 1750 ℃ Rate

Paint for outdoors face

800 ° C Rate

Burning Chamber

1570L

Internal Dimensions

150x100x105cm

2nd Chamber

750L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

210/230V 50/60Hz

Power

0.9 Kw

Oil Consumption (kg/hour)

Common 20.4-28.0( D.O)

Gas Intake (m3/hour)

***

Temperature Level Screen

Digital Program

Temperature Level Safety

Yes

Oil Container

300L

Feed Door

80x60cm

Chimney

10Meter

Smokeshaft Type

Stainless-steel

1st.

Gross Weight

8500kg

Outside Dimensions

300x160x280cm( without smokeshaft)

Gross Weight

8500kg

Exterior Dimensions

300x160x280cm( without smokeshaft)
