50-100-150-200 Kgs per Human Resources Strong Waste Heater Version TS150 PLC 1570Liters Chamber

Waste Heater Design TS150 PLC, Review

This design is small-scale waste incineration tools for tiny waste end result.

Construction is dual/double combustion chamber with 02 sets oil burner, batch load

incineration equipment. Waste feed chamber is 1570Liters (1.57m³, TS150 PLC).

Primary & Secondary combustion chambers and smoke filter chamber.

Batch load on the bottom of chamber. Incinerator PLC panel control suit for local operation.

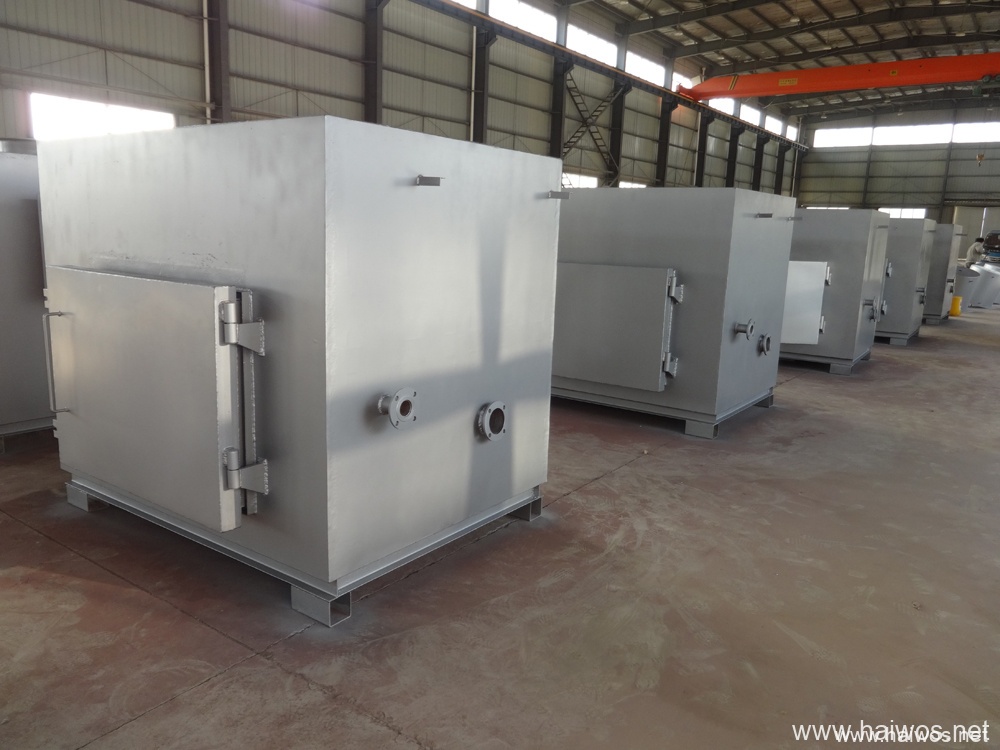

Primary Combustion Chamber:

※Main Feature:

— Double Combustion Chamber

— Double Italy Burner

— Smoke Filter included

–Burning Rate: 50-200kgs per hour optional

–Primary Combustion Chamber: 1.57M3(1570Liters)

— Incinerator Mainbody steel: 8mm thickness

— Paint for outside face: 800°C Rate

—Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate

— Idea for campsite average or below 600 people

— Chimney: 10 Meters, Stainless steel

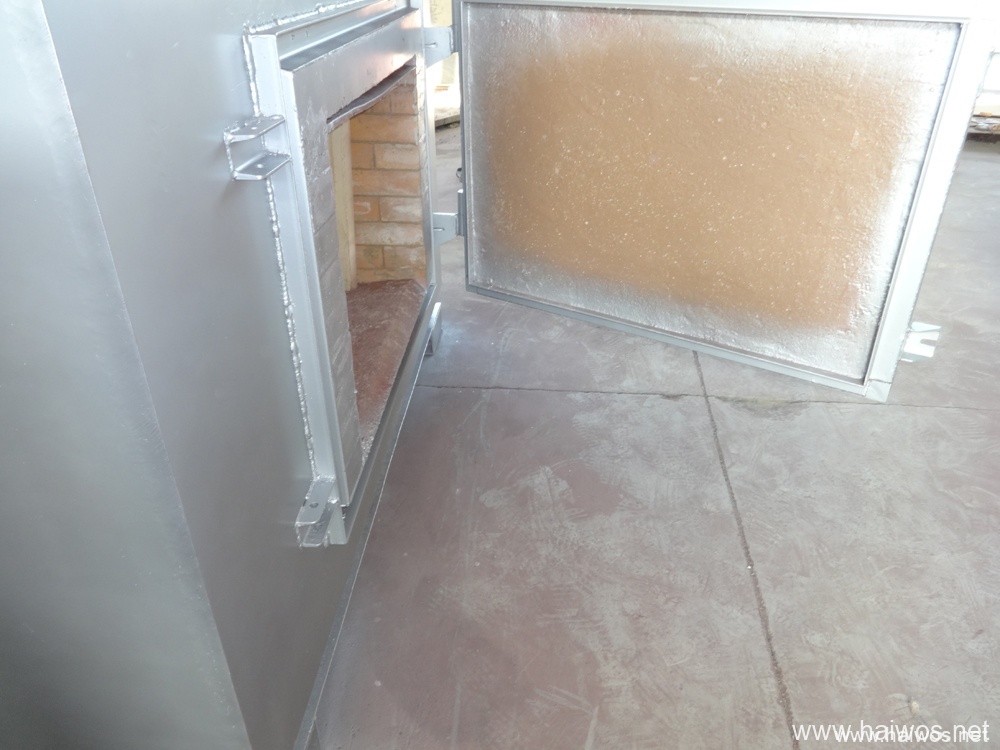

Feeding door primary chamber:

Items/Model

TS150( PLC)


Idea

Waste Incineration Therapy

Shed Price

Typical 150 kg/hour

*( 50/100/200kgs/ hr optional)

Feed Capacity

Requirement 750kg/feeding

Control Mode

PLC( Programmable Reasoning Controller Burner)

Text Steel

8mm thickness

Chamber Material

High Alumina Fire Brick Wall Surface Area, 1750 ℃ Rate

Paint for outdoors face

800 ° C Rate

Burning Chamber

1570L

Inner Measurements

150x100x105cm

Added Chamber

750L

Smoke Filter Chamber

Yes

Feed Setting

Guidebook

Voltage

210/230V 50/60Hz

Power

0.9 Kw

Oil Usage (kg/hour)

Normal 20.4-28.0( D.O)

Gas Use (m3/hour)

***

Temperature Level Display

Digital Existing

Temperature Degree Protection

Yes

Oil Storage Tank

300L

Feed Door

80x60cm

Smokeshaft

10Meter

Smokeshaft Kind

Stainless-steel

1st. Chamber Temperature

800 ℃—- -1000 ℃

second. Chamber Temperature Level

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Gross Weight

8500kg

Outside Dimensions

300x160x280cm( without smokeshaft)
